Trailer Lazy Axle Complete 1000kg 40mm Square

Previous Next

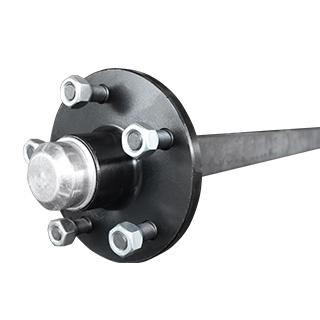

Trailer Lazy Axle Complete 1000kg 40mm Square

LA40S

The 40mm square lazy trailer axle has an extra durable shaft which ensures stability and strength to handle heavy loads. This axle is perfect for trailers rated upto 1000kg. Easy to install and low maintenance, our axles are the perfect choice for hassle-free operation.

Description

This 40mm square lazy axale axle is rated to 1000kg and comes with lazy hubs Choose from Ford, Holden or Landcruiser stud patterns. This heavy-duty axle is constructed from high-quality materials and has a natural steel finish. With a rating of 1000kg, this axle is ideal for a range of medium rated trailers and can be used in single or tandem axle kits. The pre-fitted hubs provide added convenience, saving you time and effort during installation.

Advantages

Heavy duty construction
1000kg capacity
Assembled hubs
Australian Assembly
Natural steel finish
Multiple sizes available

What’s Included:

1 x 40mm square Lazy Axles with Hubs Fitted

The axle sizes are measured tip to tip of the bare axle, if you need help determining your size or need a custom drop/overlay style axle please contact our friendly staff or view the “Resources & Downloads” section below for more information.

Stud Pattern

Stud Pattern	Stud PCD	Stud Distance	Common Stud Size
FORD	5 x 114.3mm	67.18mm	1/2"
COMMODORE	5 x 120mm	70.53mm	7/16"
HQ HOLDEN	5 x 120.65mm	70.91mm	7/16"
HT HOLDEN	5 x 108mm	63.95mm	7/16"
LANDCRUISER/NISSAN	6 x 139.7mm	69.85mm	1/2"
LANDCRUISER 100 SERIES	5 x 150mm	88.20mm	9/16"
GEMINI	4 x 100mm	70.71mm	7/16"
DATSUN	4 x 114.3mm	80.80mm	7/16"
