SEE45P

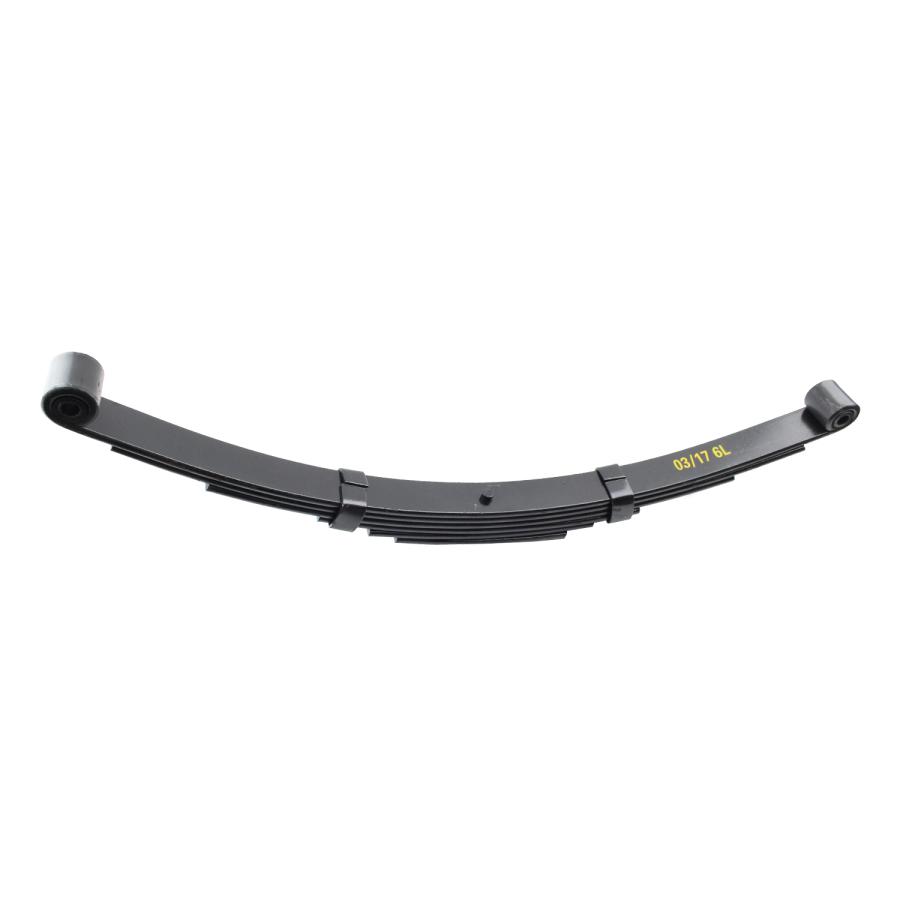

The leaf eye and eye suspension provides a heavy duty solution to help take the load of your trailer and cargo. Designed to work with either single axle or tandem axle trailers these springs offer reliable performance ensuring you can get to your destination safely.
Description
Advantages
What’s Included
1 x Eye and eye leaf spring (load rating of your choice)
Load capacity provided is for pair springs. This listing is for one spring only.
Additional information
| Load Rating |
5 Leaf (1200kg Pair), 6 Leaf (1400kg Pair), 7 Leaf (1500kg Pair), 8 Leaf (1600kg Pair) |
|---|
PAINTED
| CODE | LEAF | CAPACITY PER PAIR (KG) | EYE TO BOLT (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|---|---|---|
| S5EE45P | 5 | 1200 | 355 | 710 | 130 | 45 | 8 | 12 |
| S6EE45P | 6 | 1400 | 355 | 710 | 130 | 45 | 8 | 12 |
| S7EE45P | 7 | 1500 | 355 | 710 | 130 | 45 | 8 | 12 |
| S8EE45P | 8 | 1600 | 355 | 710 | 130 | 45 | 8 | 12 |
| S5EE60P | 5 | 1050 | 293 | 686 | 114 | 60 | 6 | 16 |
| S6EE60P | 6 | 1300 | 293 | 686 | 114 | 60 | 6 | 16 |
| S7EE60P | 7 | 1400 | 293 | 686 | 114 | 60 | 6 | 16 |
| S8EE60P | 8 | 1500 | 293 | 686 | 114 | 60 | 6 | 16 |
DACROMET
| CODE | LEAF | CAPACITY PER PAIR (KG) | EYE TO BOLT (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|---|---|---|
| S5EE45D | 5 | 1200 | 355 | 710 | 130 | 45 | 8 | 12 |
| S6EE45D | 6 | 1400 | 355 | 710 | 130 | 45 | 8 | 12 |
| S7EE45D | 7 | 1500 | 355 | 710 | 130 | 45 | 8 | 12 |
| S8EE45D | 8 | 1600 | 355 | 710 | 130 | 45 | 8 | 12 |
