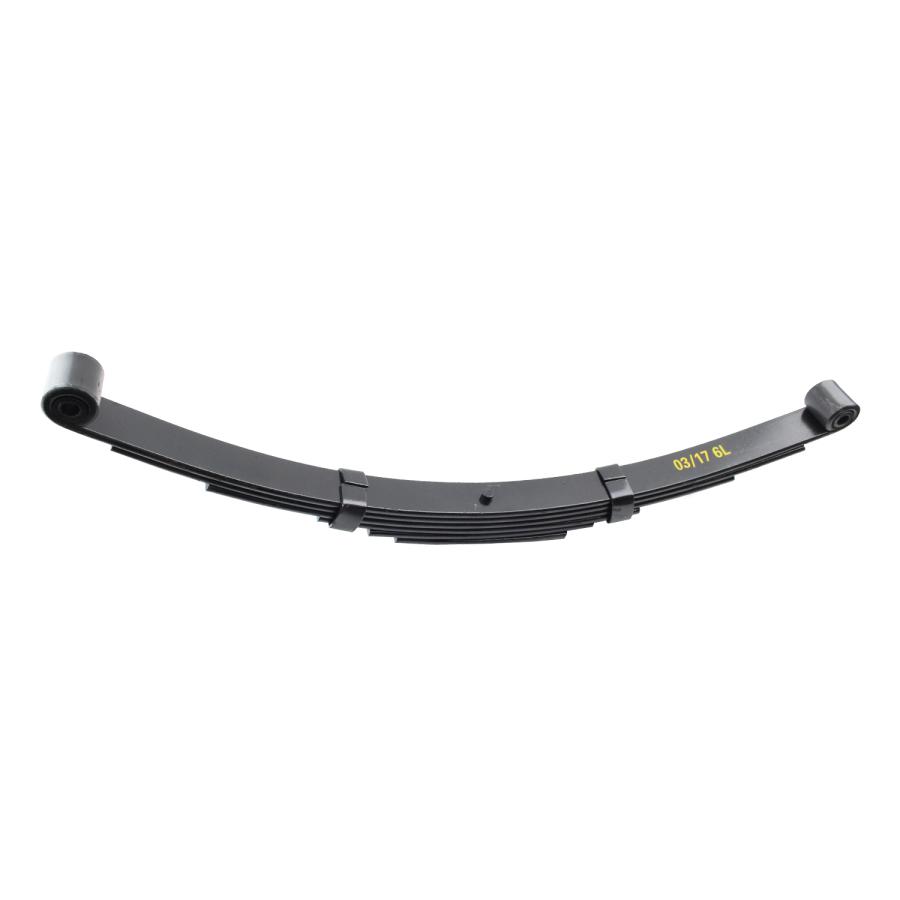

Leaf Eye and Eye Suspension Spring 60 x 6 mm

SEE60P

The leaf eye and eye suspension provides a heavy duty solution to help take the load of your trailer and cargo. Designed to work with either single axle or tandem axle trailers these springs offer reliable performance ensuring you can get to your destination safely.

Description

Designed for extreme durability and quality, the eye and eye leaf suspension is a perfect replacement for your old worn down leaf springs. The eye springs can be joined with hangers on dual axle trailers or used as individual sets. Each spring is made from specially treated steel designed to last when used in our tough Australian Terrains. This style of spring arrangement is a simple and low cost solution that is trusted by many local trailer manufacturers.

Additional information

Load Rating	5 Leaf (1050kg Pair), 6 Leaf (1300kg Pair), 7 Leaf (1400kg Pair), 7 Leaf (1400kg Pair) 7mm Leaf, 8 Leaf (1500kg Pair)

What’s Included

1 x Eye and eye leaf spring (load rating of your choice)

Load capacity provided is for pair springs. This listing is for one spring only.

Advantages

Pick your desired rating
Designed for trailers from 1200kg to 3200kg (Single and tandem)
Low impact and extremely abrasion resistant
Resistance to wear & tear

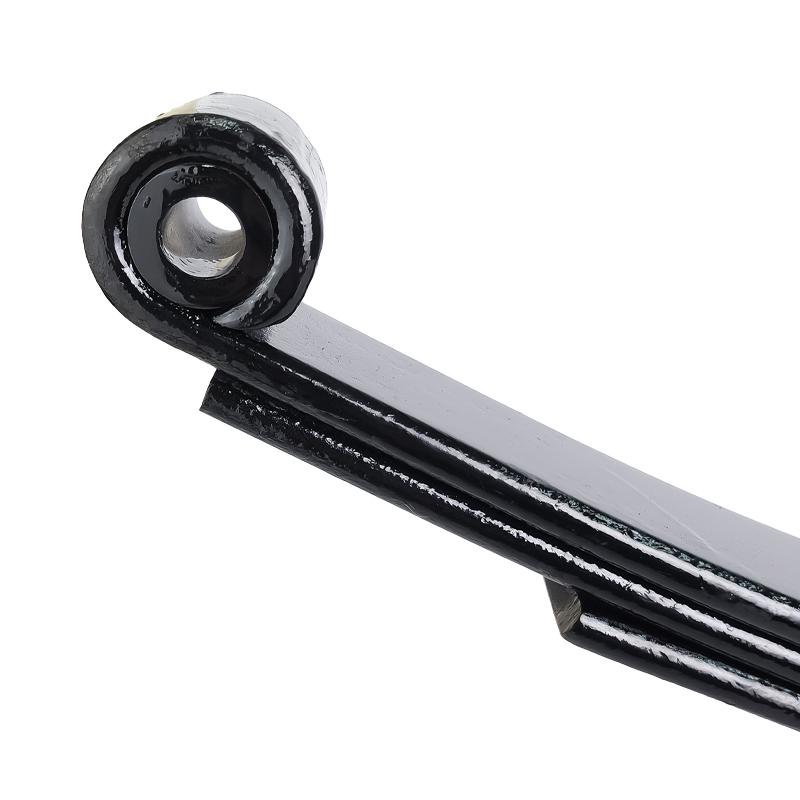

Eye and eye style
Excellent impact absorption

PAINTED

CODE	LEAF	CAPACITY PER PAIR (KG)	EYE TO BOLT (mm)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)
S5EE45P	5	1200	355	710	130	45	8	12
S6EE45P	6	1400	355	710	130	45	8	12
S7EE45P	7	1500	355	710	130	45	8	12
S8EE45P	8	1600	355	710	130	45	8	12
S5EE60P	5	1050	293	686	114	60	6	16
S6EE60P	6	1300	293	686	114	60	6	16
S7EE60P	7	1400	293	686	114	60	6	16
S8EE60P	8	1500	293	686	114	60	6	16

DACROMET

CODE	LEAF	CAPACITY PER PAIR (KG)	EYE TO BOLT (mm)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)
S5EE45D	5	1200	355	710	130	45	8	12
S6EE45D	6	1400	355	710	130	45	8	12
S7EE45D	7	1500	355	710	130	45	8	12
S8EE45D	8	1600	355	710	130	45	8	12
